The Fragment Relationship wizard is used to establish a many-to-many or many-to-one relationship between two application fragments. Many-to-many relationships support the option of managing the relationship from both entity user interfaces.

Select the new resource wizard and choose the Fragment Relationship wizard.

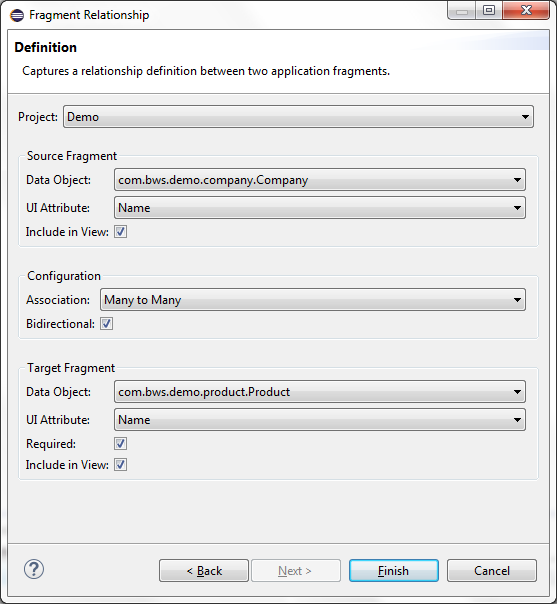

Populate all required fields on the Definition wizard page. Definitions of each field are listed below the screen shot.

Field	Description
Project	Workspace project where application resources will be generated.
Source Fragment: Data Object	Data object associated with the source fragment.
Source Fragment: UI Attribute	Attribute associated with the source fragment data object. Only valid in a many-to-many relationship and specifies the value to display when managing the relationship from the target fragment user interface.
Source Fragment: Include in View	Indicates the source fragment will be included in the target fragment's view.
Configuration: Association	Type of relationship to establish. Many-to-many or many-to-one relationships are available for selection.
Configuration: Bidirectional	Indicates the relationship can be managed from both the source and target fragment user interfaces.
Target Fragment: Data Object	Data object associated with the target fragment.
Target Fragment: UI Attribute	Attribute associated with the target fragment data object. Specifies the value to display when managing the relationship from the target fragment user interface.
Target Fragment: Required	Indicates the target fragment is a required field when editing a source fragment.
Target Fragment: Include in View	Indicates the target fragment will be included in the source fragment's view.

The following table documents the project specific resources modified by the Fragment Relationship wizard.

Directory	Resource	Description
src	<base-package>.configuration.FieldIds	Adds relationship specific field ID constants.
src	<base-package>.configuration.fragment.<fragment-name>Configuration	Add fields, actions, and data object bindings supporting the fragment relationship.
src	<base-package>.<fragment-name>.<fragment-name>.java	Adds property supporting the fragment relationship.
src	<base-package>.<fragment-name>.<fragment-name>Manager.java	Adds a column binding (many-to-one) or associate binding (many-to-many) the fragment relationship.
sql	app-category.txt	Adds fragment specific SQL statements supporting any new code lookup categories.
sql	app-entity.txt	Adds SQL statements used to create a column (many-to-one) or associative table (many-to-many) supporting the fragment relationship.
sql	app-security.txt	Adds SQL statements used to populate security entitlements supporting the fragment relationship.
WebContent/<fragment-name>	<fragment-name>.jsp/td>	Adds selection component to the edit entity page supporting the fragment relationship.
